XLA082-SP

XLA082-SP can be used in applications for small and mid-size touring events, like roadshows, parties, company events, etc and fixed installations like ballrooms, conference rooms, coffee shops, lounge bars,etc.

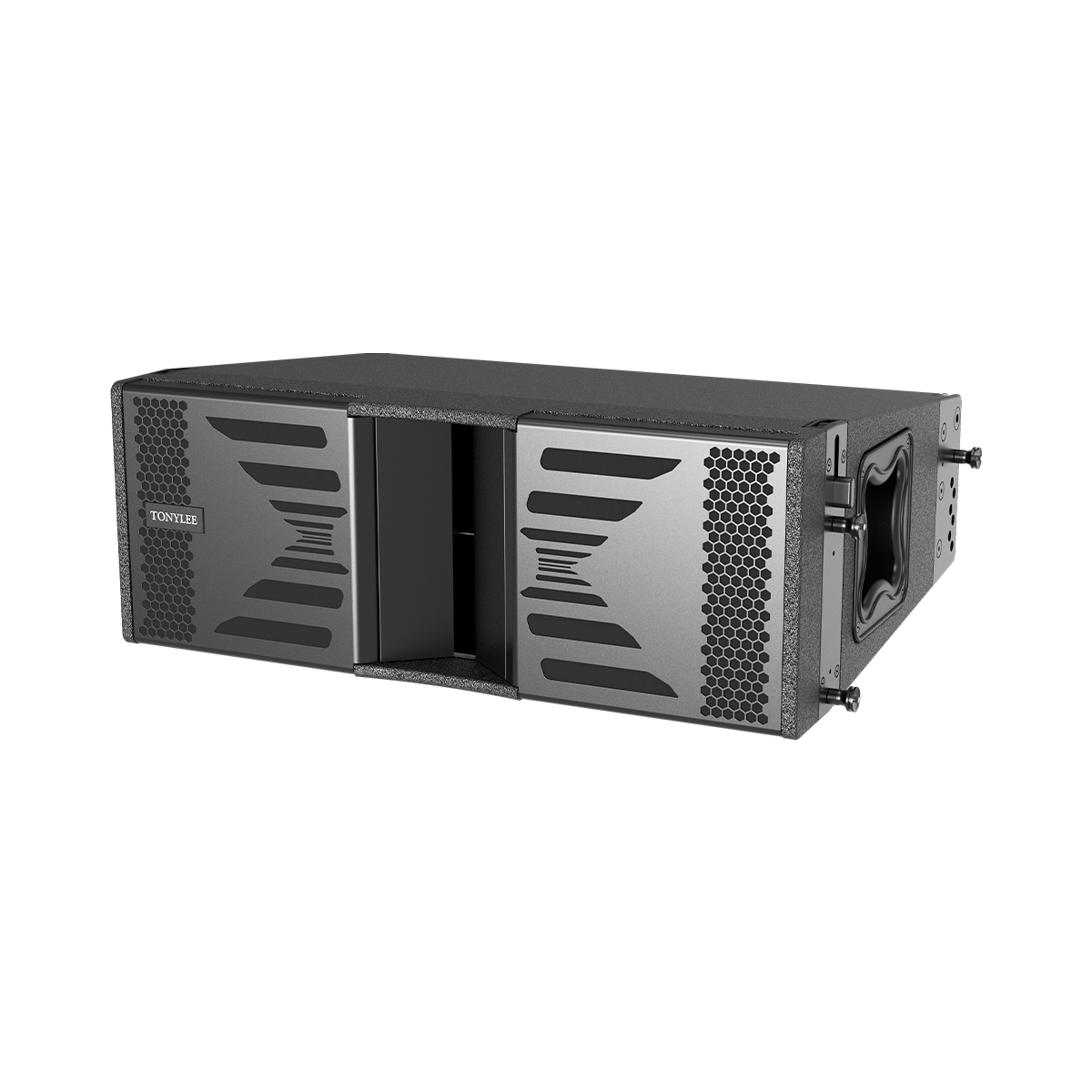

XLA082-SP, an active crossover line array speaker, is designed to meet the high requirements of touring performances and fixed installations.



The HF driver of XLA082-SP is customized Audiocenter driver with composite membrane (1.75”voice coil), and the MF/LF driver is customized Audiocenter 8” driver (2”voice coil).

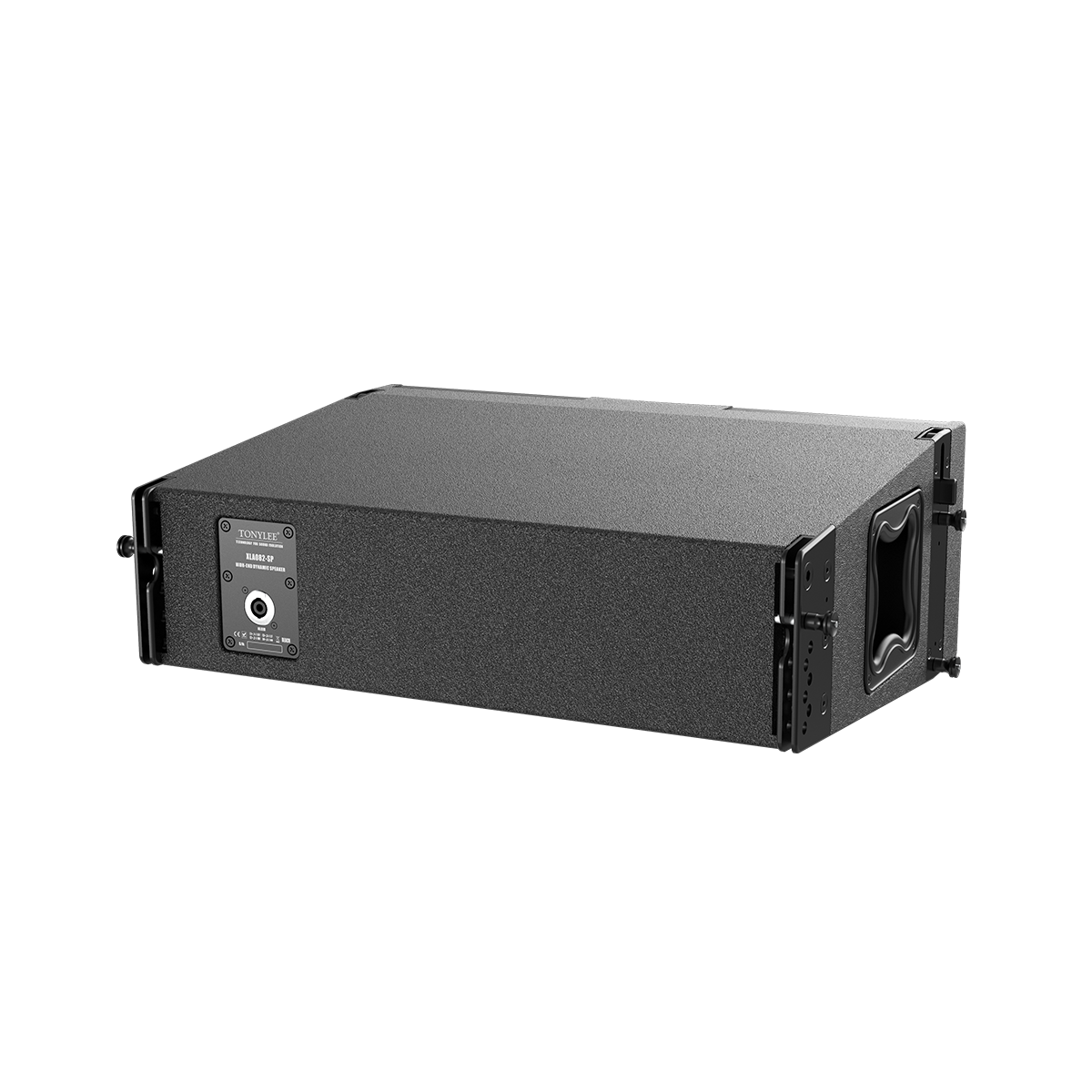

In application, 1 unit of XLA082-SP should work together with 1 unit of XLA082-MA. This one-driven-one working mode can fulfill paralleling of the amplifier signal by the 8-pin power connector on the back panel.



XLA082-SP integrated hardware with innovative fast lock mechanics built-in to the cabinet with 10.0mm high intensity pins make installation of XLA082-SP easy and convenient. The system can be configured in modularization according to the venues. Same frame can be either used for flying the arrays or for ground stacking the arrays (We suggest 4pcs maximum for stacking). To meet different demands, by use of tripod and coupling bar, the system also can be stacked (maximum 4 units).






 Important Features

Innovative BrainCore™ technology to improve the audio performance of the system

The innovative BrainCore™ technology and built-in powerful DSP processor improve the performance of the speaker. With Cort™ correction technology and Limita™ processing technology, the system works with safety and reliability and achieves supreme performance.



Advanced Cooling System

Custom-moulded heat sink with honeycomb structure increases the contact surface with air, improving cooling efficiency.



Class D Amplifier

The XLA-DSP Series features customised Class D amplifiers together with switch mode power supply technology, ensuring high efficiency and a compact design.



Customized ProDriver

State-of-the-art speaker technology and custom-designed drivers deliver clean, clear sound and impressive dynamics.



Active speaker DSP

The XLA-DSP comes with 3 different presets. Users can select the preset that best suits their needs using the switch on the rear panel.



Innovative ETE™ Waveguide Technology

Innovative ETE waveguide technology provides accurate frequency response and controlled horizontal dispersion, ensuring the system delivers a balanced, clear and clean sound.



Solid wood construction

Optimised and compact CNC-machined cabinet. Constructed from Russian birch plywood, it's solid, waterproof and lightweight, making it ideal for touring applications.



Durable Polyurea Coating

The polyurea coating provides waterproof, wear resistance, impact resistance and aging resistance characteristics.



Integrated rigging

The integrated rigging is easy to assemble and gives the XLA-DSP the flexibility to be used in different venues and applications.



EASE GLL

EASE GLL file available.







Specifications



  XLA082-SP XLA082-MA XLA102-DSP XLA122-DSP XLA182-DSP
Frequency Response(-10dB anechoic chamber) 67Hz-20KHz 67Hz-20KHz 42Hz-20KHz 40Hz-20KHz 30Hz-140Hz
Maximum Calculated SPL/1M(Continuous/Peak) 122dB/128dB 122dB/128dB 130dB/136dB 133dB/139dB 134dB/140dB
Horizontal Coverage Angle (Symmetrical) 100° 100° 90° 90° /
Vertical Coverage Angle (Dissymmetrical) Depend on the amount of the speaker and curvature of the line array Depend on the amount of the speaker and curvature of the line array Depend on the amount of the speaker and curvature of the line array Depend on the amount of the speaker and curvature of the line array /
LF Driver              Customized 2x8” driver, 2.0” voice coil Customized 2x8” driver, 2.0” voice coil Customized 2x10” driver, 2.5”voice coil Customized 2x12” driver, 3”voice coil Customized 2x18” driver, 4”voice coil
HF Driver             Customized driver, 1x1.75” voice coil,1.0” exit Customized driver, 1x1.75” voice coil,1.0” exit Customized driver, 1.0”exit, 2x1.75”voice coil Customized driver, 1.4”exit, 2x3”voice coil /
Amplifier Circuitry / Class D Class D Class D Class D
Power(Peak) / 3200W 3200W 3200W 4000W
Frequency Response(1W 8Ω 2ch) / 20Hz-20kHz(±0.5dB) 20Hz-20kHz(±0.5dB) 20Hz-20kHz(±0.5dB) 20Hz-20kHz(±0.5dB)
Intermodulation Distortion / <0.05% <0.05% <0.05% <0.05%
Total Harmonic Distortion / <0.05% <0.05% <0.05% <0.05%
Protection / DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Cooling System / Cooling with fans Cooling with fans Cooling with fans Cooling with fans
Processor / 96KHz signal sampling frequency 96KHz signal sampling frequency 96KHz signal sampling frequency 96KHz signal sampling frequency
Presets  / FLAT,HF BOOST,W/SUB FLAT,HF BOOST,W/SUB FLAT,HF BOOST,W/SUB 80Hz,100Hz,120Hz
Signal Input/Output Connectors 8pin speakon output Female XLR input,male XLR & 8pin speakon output Female XLR input,male XLR output Female XLR input,male XLR output Female XLR input,male XLR output
Power Input/Output / Power connector  Power connector  Power connector  Power connector
AC Power Operating Range / 100V~130V or 220V~240V(±10%,50/60Hz) 100V~130V or 220V~240V(±10%,50/60Hz) 100V~130V or 220V~240V(±10%,50/60Hz) 100V~130V or 220V~240V(±10%,50/60Hz)
Adjusted Angles 0°,2°,4°,6°,8°,10° 0°,2°,4°,6°,8°,10° 0.25°、1°、2.5°、4°、6°、8°、10° 0.25°、1°、2.5°、4°、6°、8°、10° /
Power consumption (1/8 output power) / 82W 117W 176W 295W
Handles 2 side 2 side 2 side 2 side 8 side
Cabinet Material     CNC made of excellent wood CNC made of excellent wood Russian birch plywood CNC made Russian birch plywood CNC made Russian birch plywood CNC made
Cabinet Color        Black is standard and default color. Consult with sales team for other customized colors  Black is standard and default color. Consult with sales team for other customized colors  Black is standard and default color. Consult with sales team for other customized colors  Black is standard and default color. Consult with sales team for other customized colors  Black is standard and default color. Consult with sales team for other customized colors
Speaker Dimensions(W×H×D) 630x236x467mm 630x236x467mm 832×295×424mm 1010×347×501mm 1154×584×750mm
Carton Dimensions(W×H×D) 779x570x325mm 779x570x325mm 922×519×385mm 1100×585×437mm 670×1249×840mm
Net Weight 20.0Kg 22.0Kg 36.0Kg  50.0Kg  100.0Kg
Shipping Weight 23.0Kg 25.0Kg 40.0Kg 54.0Kg 104.0Kg
