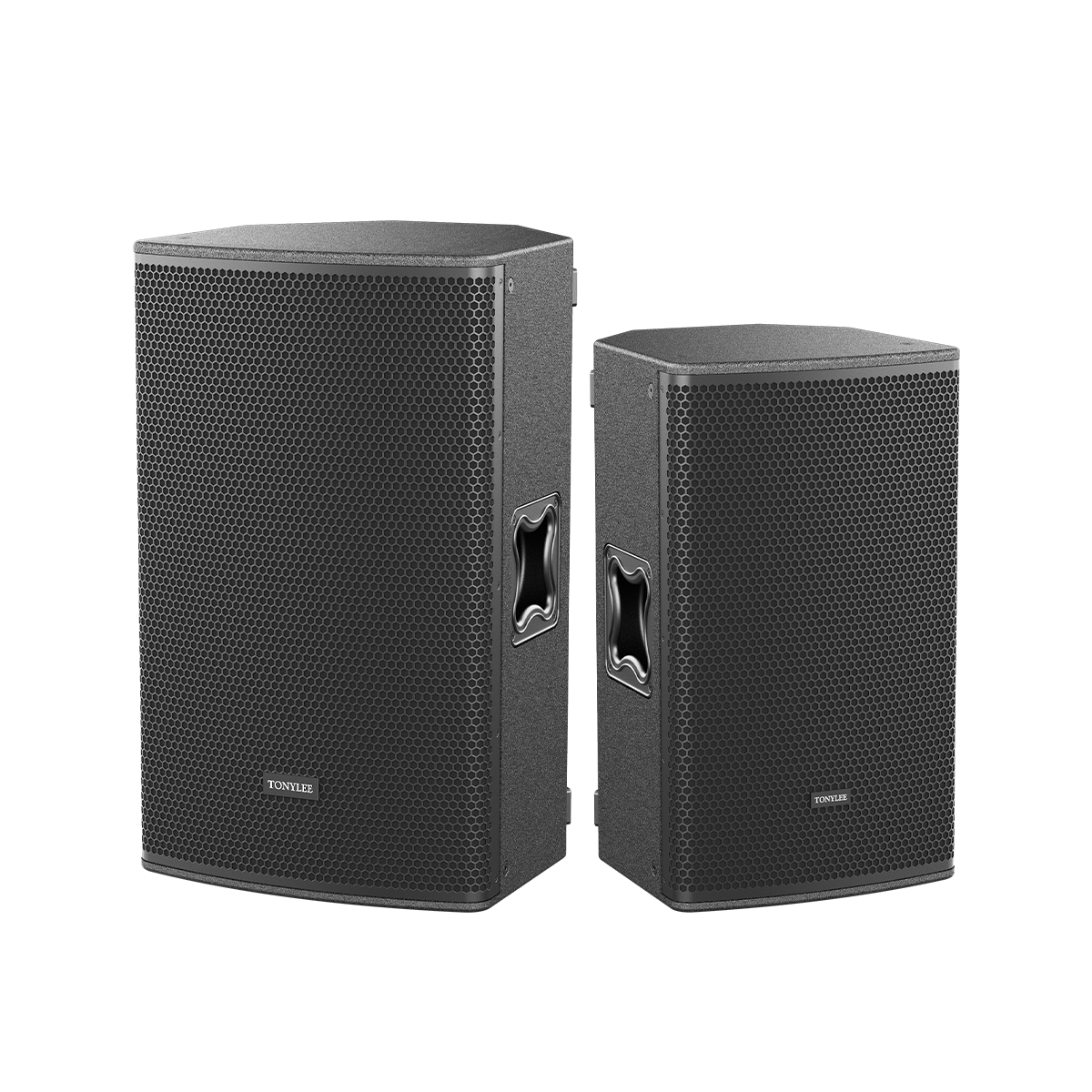

ES315A

Two combo inputs CH A (1-way XLR and Mono jack 6.35) are available in ES315A, which can be switched between line input and microphone input. The audio port CH B(Mono jack 6.35 or a RCA port) is for the other sound resources like MP3, CD player, etc. There is 1-way signal input port for wireless bluetooth in it and the volume is controlled by terminal. The gain of CH A/CH B signal input is controlled by independent knob and 1-way master volume control knob. The four different audio sources can be parallel output with one-way XLR after mixed internally, and then sent to different speakers for sound distribution.

ES315A can be installed by steel wire. It can also be standing by coupling bar or three-feet stand. The pole mount is 35mm. Various accessories are offered for ES315A to meet different kinds of installs.





 Important Features

Innovative XCore™ Technology to Improve the Audio Performance of the System

The innovative XCore™ technology and built-in powerful DSP processor improve the performance of the speaker. With Cort™ correction technology and Limita™ processing technology, the system works with safety and reliability and achieves supreme performance.



Advanced Cooling System

Moulded large heatsink improves cooling , resulting in higher reliability.



Class D Amplifier

The power amplifier module and DSP module have been designed by R&D team in Europe and manufactured according to Europe engineering standards. The system operates stably and efficiently, ensuring high-quality audio output.



Customized ProDriver

Latest driver technology and customized drivers ensure a clean sound and impressive dynamics.



EQ Adjustable

The frequency response of different bandwidth range can be adjusted according to actual application, very easy to use.



Built-in Bluetooth

ES's built-in wireless Bluetooth enables easy connection of various Bluetooth devices for audio output. ES supports Bluetooth connection with TWS(True Wireless Stereo)functionality, allowing users to achieve stereo wireless pairing. Users can enjoy the wonderful sound whenever and wherever possible. The transfer is stable and reliable.



Unique Horn Design

ES adopts unique  horn design, which makes the penetration of HF stronger, and get cleaner and clearer sound.



Rotatable Horn

The 90°x60° HF horn can be rotated, allowing to choose the horizontal and vertical angles that best suits your needs.



Excellent Materials and Unique Physical Acoustics Design

CNC made cabinet of excellent wood reduces resonance and makes the cabinet stronger. Customized driver, physical acoustics construction design and innovative designed, compact and multi-purpose cabinet, provide the clean and clear sound.



Durable Polyurea Coating

The polyurea coating is waterproof, wear resistance, impact resistance and aging resistance.



Portable Design, Plug&Play

The compact and integrated installation design, integrated and simple control of back panel and fast connect to speaker system make it suitable for fixed installation and touring   performance. Very simple and convenient for usage.







Specifications



  ES315A ES312A
Frequency Response(-10dB anechoic chamber) 45Hz-20KHz 50Hz-20KHz
Maximum Calculated SPL/1M(Continuous/Peak) 128dB/134dB 126dB/132dB
Horizontal Coverage Angle (Symmetrical) 90°/60° 90°/60°
Vertical Coverage Angle (Dissymmetrical) 60°/90° 60°/90°
LF Driver              Customized 15” driver, 3.0” voice coil Customized 12” driver, 2.5” voice coil
HF Driver             Customized driver,1.75” voice coil,1.0” exit Customized driver,1.75” voice coil,1.0” exit
Amplifier Circuitry Class D Class D
Power(Peak) 1600W 1600W
Frequency Response(1W 8Ω 2ch)  20Hz-20kHz(±0.5dB) 20Hz-20kHz(±0.5dB)
Intermodulation Distortion <0.05% <0.05%
Total Harmonic Distortion <0.05% <0.05%
Protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection
Signal Input Connectors Female XLR(Mono jack 6.35), Mono jack 6.35, RCA, Wireless bluetooth Female XLR(Mono jack 6.35), Mono jack 6.35, RCA, Wireless bluetooth
Signal Output Connectors Male XLR Male XLR
Power Input Connector IEC power connector IEC power connector
Working Voltage 100-240V~(±10%,50/60Hz) 100-240V~(±10%,50/60Hz)
Power consumption (1/8 output power) 64W 55W
Monitor Angle Symmetrical 45° monitoring Angle Symmetrical 45° monitoring Angle
Handles 2 side 2 side
Hanging Hardwares M8 screw M8 screw
Pole Mount Base hole Φ35mm Base hole Φ35mm
Cabinet Material     CNC machined plywood  CNC machined plywood
Coating Durable Polyurea Coating  Durable Polyurea Coating
Cabinet Color        Black is the default color. Contact for customization Black is the default color. Contact for customization
Optional Accessories Flexible wall mounting bracket / Coupling bar / Three-feet stand / Flightcase / Rain bag  Flexible wall mounting bracket / Coupling bar / Three-feet stand / Flightcase / Rain bag
Speaker Dimensions(W×H×D) 444×738×446mm 362×626×367mm
Carton Dimensions(W×H×D) 522×813×522mm 443×701×443mm
Net Weight 21.5 kg 17.0 kg
Shipping Weight 24.5 kg 20.0 kg
Technical Support and After-sales Service Global application support team Global application support team
