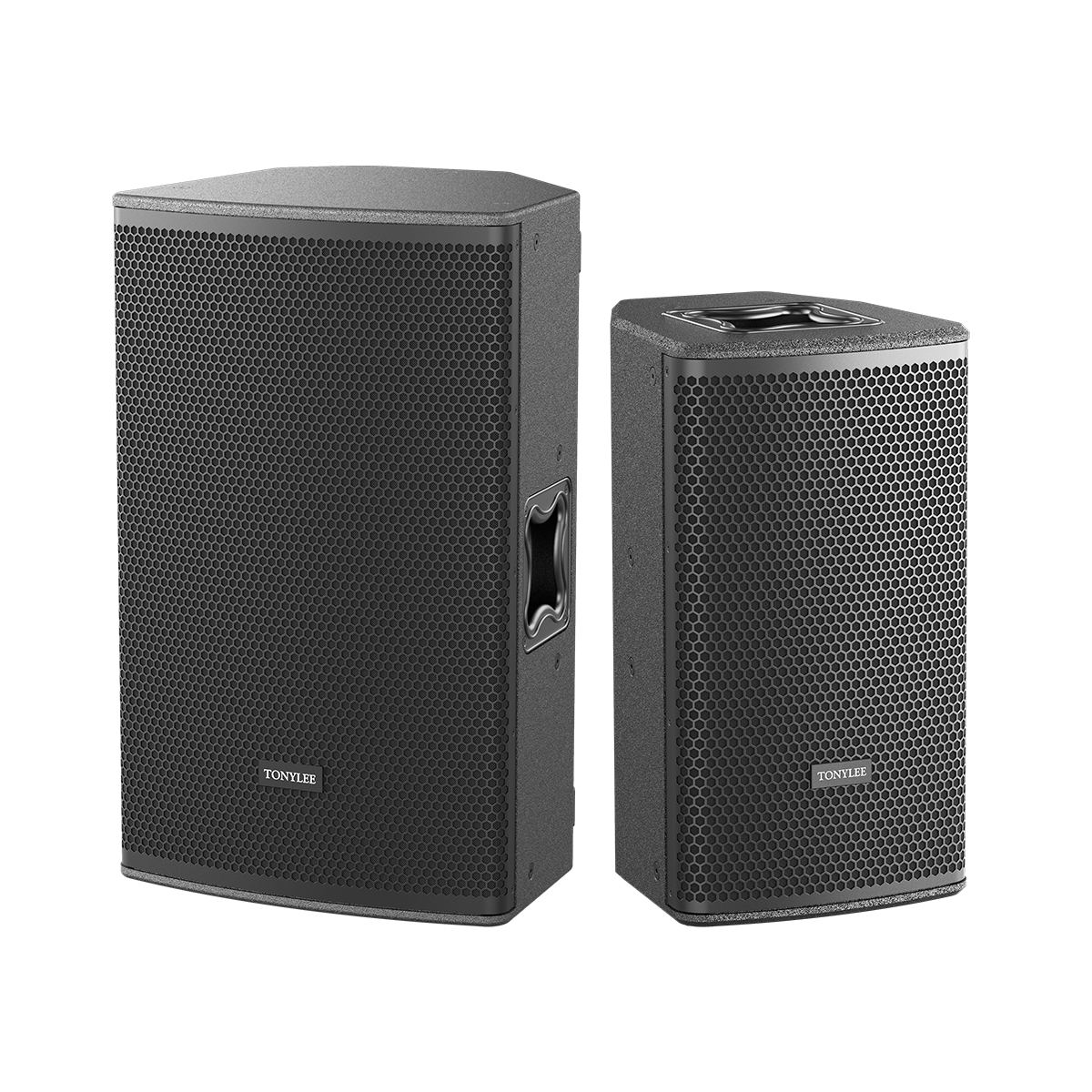

MP115A
The MP115A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.
The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.
Important Features
Innovative XCore™ Technology to Improve the Audio Performance of the System
The innovative XCore™ technology and built-in powerful DSP processor improve the performance of the speaker. With Cort™ correction technology and Limita™ processing technology, the system works with safety and reliability and achieves supreme performance.
Advanced Cooling System
Moulded large heatsink improves cooling , resulting in higher reliability.
Class D Amplifier
The power amplifier module and DSP module have been designed by R&D team in Europe and manufactured according to Europe engineering standards. The system operates stably and efficiently, ensuring high-quality audio output.
Customized ProDriver
Latest driver technology and customized drivers ensure a clean sound and impressive dynamics.
Advanced Digital FIR Filter Technology
FIR filtering enhances the audio's attack, ensuring a dynamic and impactful sound experience. The linear phase response preserves the original transient characteristics of the audio signal, resulting in a sharper, more defined attack.
3 Presets
MP active series is built with 3 different presets. Users can choose different presets according to their needs via the switch on the back panel.
Sleep mode
To save power, the system will enter into sleep mode automatically if without signal input for 45 mins.
DMF Composite Material Horn Design
The hybrid horn design using DMF composite materials makes sure of HF equalization, high-efficient signal and extremely low distortion.
Rotatable Horn
The 90°x60° HF horn can be rotated, allowing to choose the horizontal and vertical angles that best suits your needs.
Durable Polyurea Coating
The polyurea coating is waterproof, wear resistance, impact resistance and aging resistance.
Double Pole Mount
MP active Series adopts 0° or 10° options pole mount.
Solid Wood Cabinet
Optimized and compact cabinet structure design, using high-quality CNC cabinet, strong and moisture-proof, suitable for mobile applications.
Specifications
| MP115A | MP112A | |
| Frequency Response(-10dB anechoic chamber) | 38Hz-20KHz | 40Hz-20KHz |
| Maximum Calculated SPL/1M(Continuous/Peak) | 130dB/136dB | 128dB/134dB |
| Horizontal Coverage Angle (Symmetrical) | 90°/60° | 90°/60° |
| Vertical Coverage Angle (Dissymmetrical) | 60°/90° | 60°/90° |
| LF Driver | Customized 15” driver, 3.0” voice coil | Customized 12” driver, 3.0” voice coil |
| HF Driver | Customized driver,1.75” voice coil,1.0” exit | Customized driver,1.75” voice coil,1.0” exit |
| Processor | 48kHz signal sampling frequency，FIR filtering | 48kHz signal sampling frequency，FIR filtering |
| Presets | FLAT,LF BOOST,W/SUB | FLAT,LF BOOST,W/SUB |
| Amplifier Circuitry | Class D | Class D |
| Power(Peak) | 2200W | 2200W |
| Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | ＜0.05% | ＜0.05% |
| Total Harmonic Distortion | ＜0.05% | ＜0.05% |
| Cooling | Cooling with fans ,air convection | Cooling with fans ,air convection |
| Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Signal Input Connectors | Female XLR, Mono jack 6.35 and RCA | Female XLR, Mono jack 6.35 and RCA |
| Signal Output Connectors | Male XLR | Male XLR |
| Power Input Connector | Power connector | Power connector |
| Working Voltage | 100V~130V or 220V~240V（±10%,50/60Hz） | 100V~130V or 220V~240V（±10%,50/60Hz） |
| Power consumption (1/8 output power) | 95W | 95W |
| Cabinet Material | CNC machined plywood | CNC machined plywood |
| Cabinet Color | Black is the default color. Contact for customization | Black is the default color. Contact for customization |
| Coating | Durable Polyurea Coating | Durable Polyurea Coating |
| Monitor Angle | 45° monitoring Angle | 45° monitoring Angle |
| Handles | 2 side | 2 side |
| Hanging Hardwares | M8 screw | M8 screw |
| Pole Mount | 1 base hole Φ35mm on the bottom, 0° or 10° options | 1 base hole Φ35mm on the bottom, 0° or 10° options |
| Speaker Dimensions(W×H×D) | 439×716×420mm | 365×625×370mm |
| 516×785×516mm | 446×688×446mm | |
| 27.0 kg | 22.0 kg | |
| Shipping Weight | 30.0 kg | 25.0 kg |
| Technical Support and After-sales Service | Global application support team | Global application support team |
