VS600
Marketing Position
VS series is mid-class amplifier especially designed for retail and DJ market. It is an extremely high quality-price ratio product and suitable for the application when your budget is limited.
Design Idea
Modularized and compact design makes the outlook elegant
Precise and comprehensive protection system ensures a stable performance, safety and reliability and dynamic sound.
MAIN FEATURES
1.Perfect Protection System
A. Unique LXTM Linear Limiter Protection Circuit
The linear limiter protection value is as high as 8V. LXTM can track the temperature, power，frequency and adjust the limiter automatically in time to ensure the safety and the dynamic sound of the system.
B. The DC protection is ±1.5V, which can protect the speaker efficiently.
2.Beautiful and Dynamic Sound

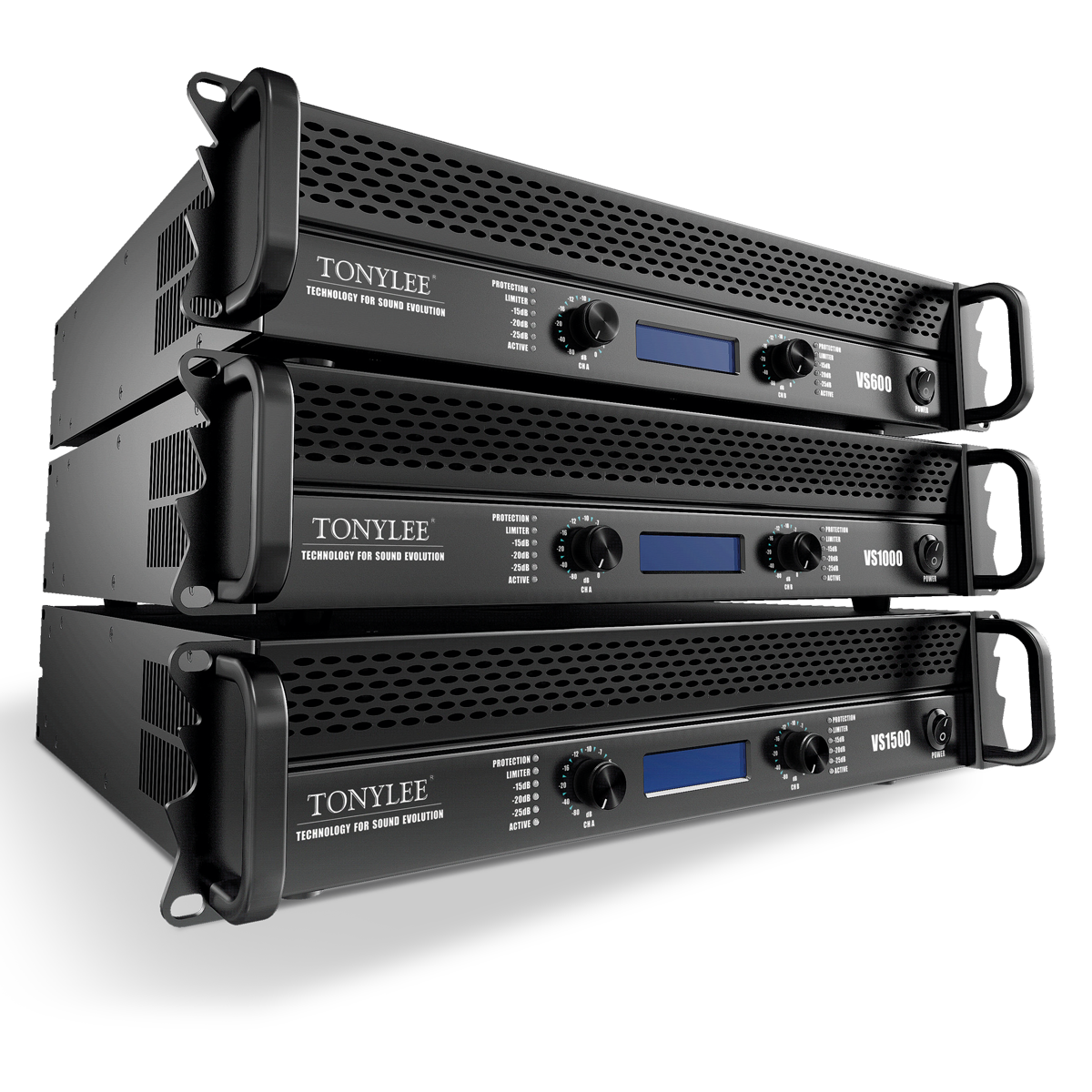

A. Class AB Circuit for VS600/VS1000/VS1500
With HIFI sound quality and class AB circuit, the amplifiers are ideal for the applications that do not require high power.
B. SLDDTM Sound Dynamic Processing Circuit
The limiter delay is 0.5dB—0.8dB and the input limiter is 8V. The SLDDTM protects the system without compromising the sound dynamics. The sound is more penetrating, powerful and with electric feel.
C. Special VLTM Crossover Circuit Design
VLTM crossover circuit, designed as 24dB/oct, is connected with filter, which not only provides a good impulse and feedback effect, but also ensures low total power consumption. The crossover point is 6dB and the crossover frequency is 125Hz, so phase change switch is not necessary. It is a good choice for subwoofer and small-sized sound system.
D. The slew rate >30V/us ensures the dynamic sound. Even for very fast and strong signal, it can deliver well with high fidelity.
E. For each model of VS/VP here, three sensitivities are available, which provides the amplifier with more connection ways and better working environment.
3.Stable and Reliable Performance
In addition to working stably in an extreme environment for a long time, VS/VP can also work at 2Ω stereo with excellent overload protection. In case the power is over the rated power, the amplifier will be locked automatically.
4.High-efficient Cooling System
The cooling system for VS/VP is with two-level speed. The cooling fan operates with slow speed when the amplifier starts up, but with full speed when the temperature in the amp reaches 50℃（120℉）
5.Professional Outlook Design

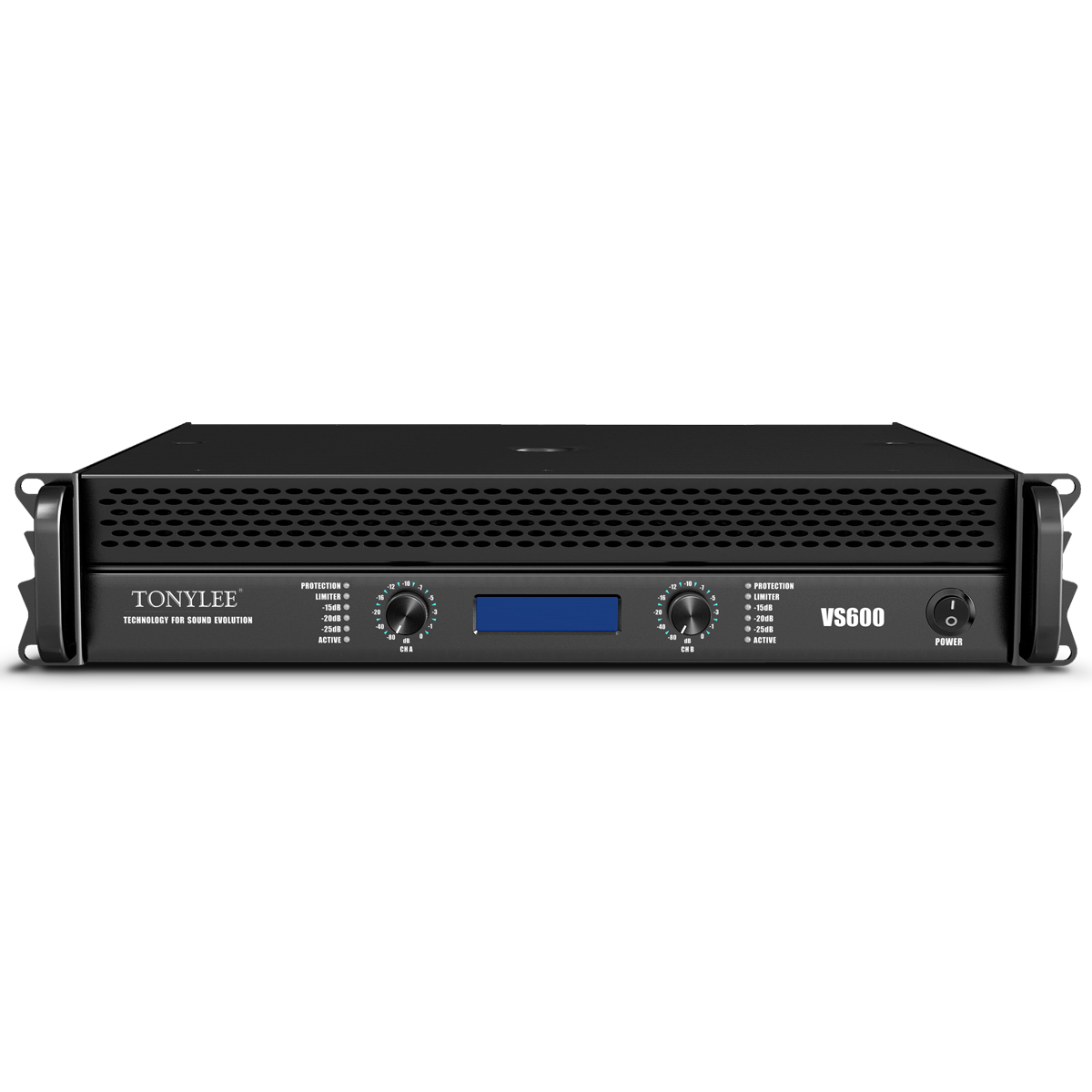

A. The front panel is made of aluminum, the rear panel PVC, which gives the amplifier an elegant appearance.
B. LCD in the front panel shows you the working temperature, working mode and protection status. With more technology, the amplifier allows users to know the working status in a direct way.
6.High Quality-price Ratio
| VS600 | VS1000 |
VS1500 |
|
| Rated Power |
2x 200W(8Ω stereo) | 2x 350W(8Ω stereo) | 2x 450W(8Ω stereo) |
| 2 x300 W(4Ω stereo) | 2 x500 W(4Ω stereo) | 2 x700 W(4Ω stereo) | |
| 2 x310 W(2Ω stereo) | 2 x550 W(2Ω stereo) | 2 x750 W(2Ω stereo) | |
| 550W(8Ω bridge) | 1000W(8Ω bridge) | 1400W(8Ω bridge) | |
| 700W(4Ω bridge) | 1100W(4Ω bridge) | 1500W(4Ω bridge) | |
| Frequency Response (1W 8Ω stereo) | 20Hz~20KHz(±0.3dB) | 20Hz~20KHz(±0.3dB) | 20Hz~20KHz(±0.3dB) |
| Sensitivity (8Ω stereo & 1KHz): | 1.0V | 1.0V | 1.0V |
| Mode | Stereo / Parallel / Bridge | Stereo / Parallel / Bridge | Stereo / Parallel / Bridge |
| Filter Capability | 10000μf / 35V × 4 | 10000μf / 35V × 4 | 10000μf / 35V × 4 |
| Damping Factor (1KHz, 8Ω) | ≥300 | ≥300 | ≥300 |
| Intermodulation Distortion | ≤0.01% | ≤0.01% | ≤0.01% |
| Total Harmonic Distortion(20Hz~20KHz Rated Power, 8Ω) | ≤0.01% | ≤0.01% | ≤0.01% |
| Slew Rate | ≥30V/μs | ≥30V/μs | ≥30V/μs |
| Output circuitry | Class AB | Class AB | Class AB |
| Protection | DC protection/short circuit protection/overheat protection/output overload protection/soft start protection | DC protection/short circuit protection/overheat protection/output overload protection/soft start protection | DC protection/short circuit protection/overheat protection/output overload protection/soft start protection |
| Dimension(WxHxD) | 483 x88x386.5mm | 483 x88x386.5mm | 483 x88x386.5mm |
| Net weight | 12.5Kg | 15.0Kg | 19.0Kg |
