XLA122-DSP

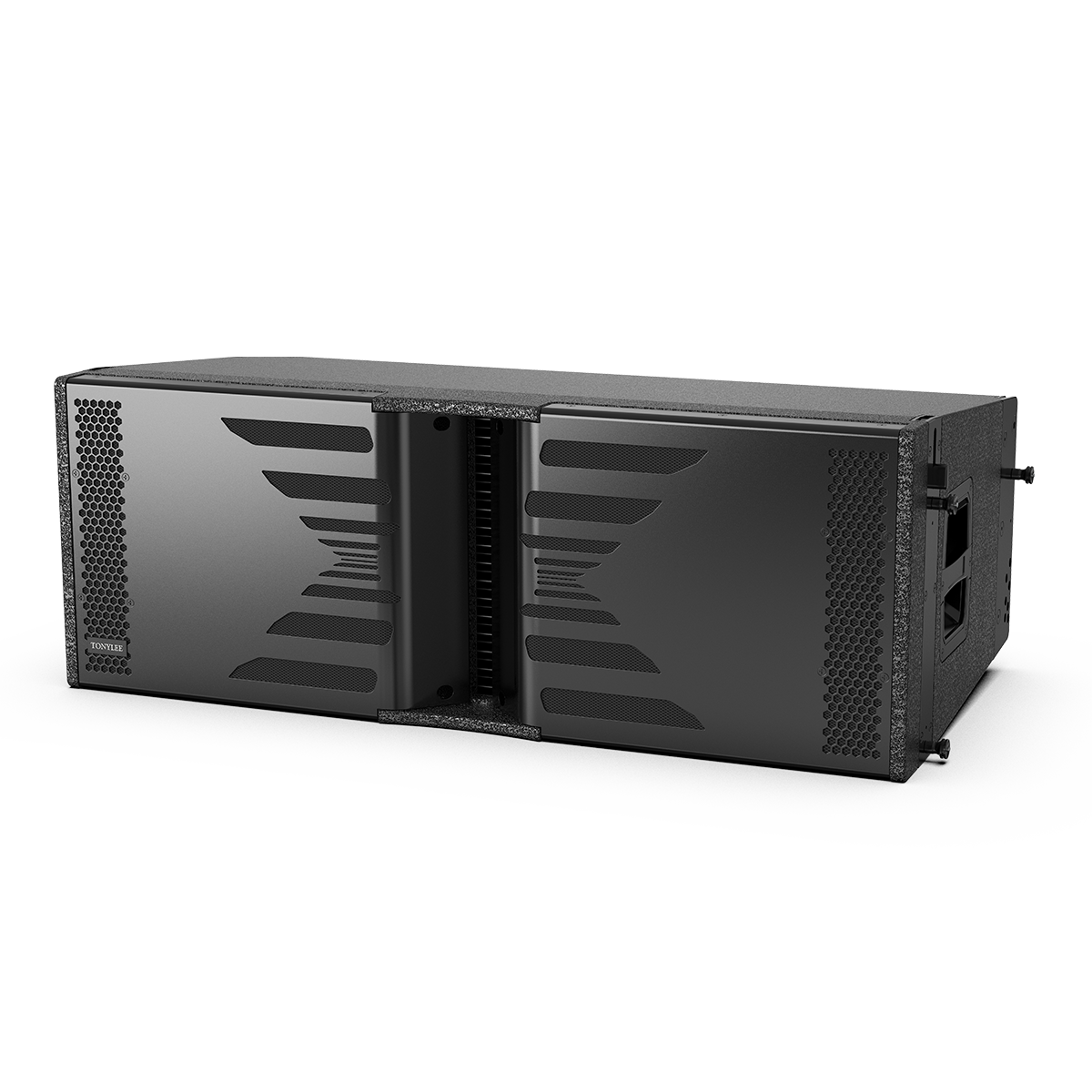

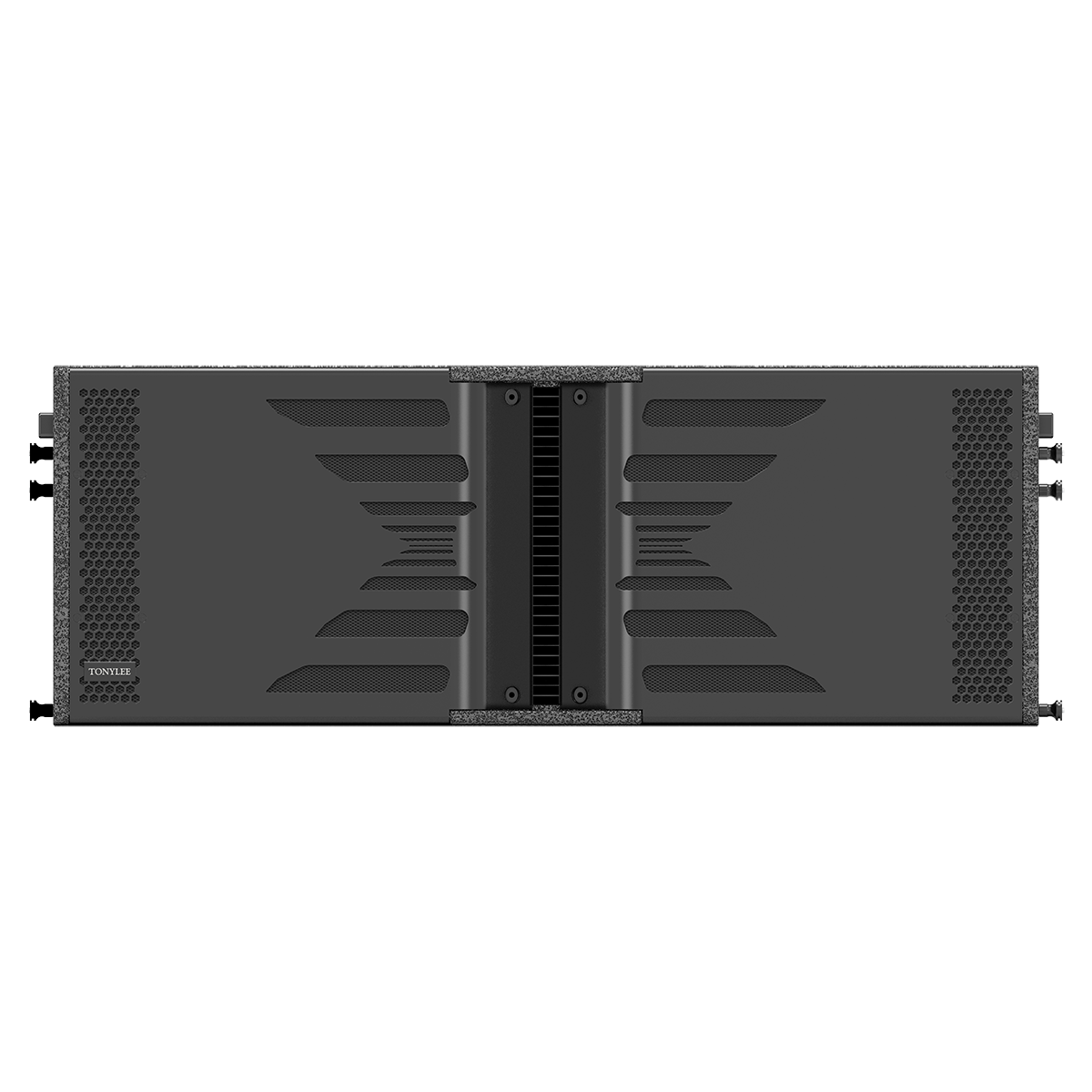

The XLA122-DSP is an active line array system. A newly designed horn and acoustic load provide high efficiency in the mid-frequency range and 90 degrees uniform horizontal coverage. Its excellent sound performance, compact size and light weight make it ideal for demanding touring events and fixed installations.
The XLA122-DSP features two customised 3" HF drivers with composite diaphragms and two customised 12" LF drivers (with 3" voice coils).

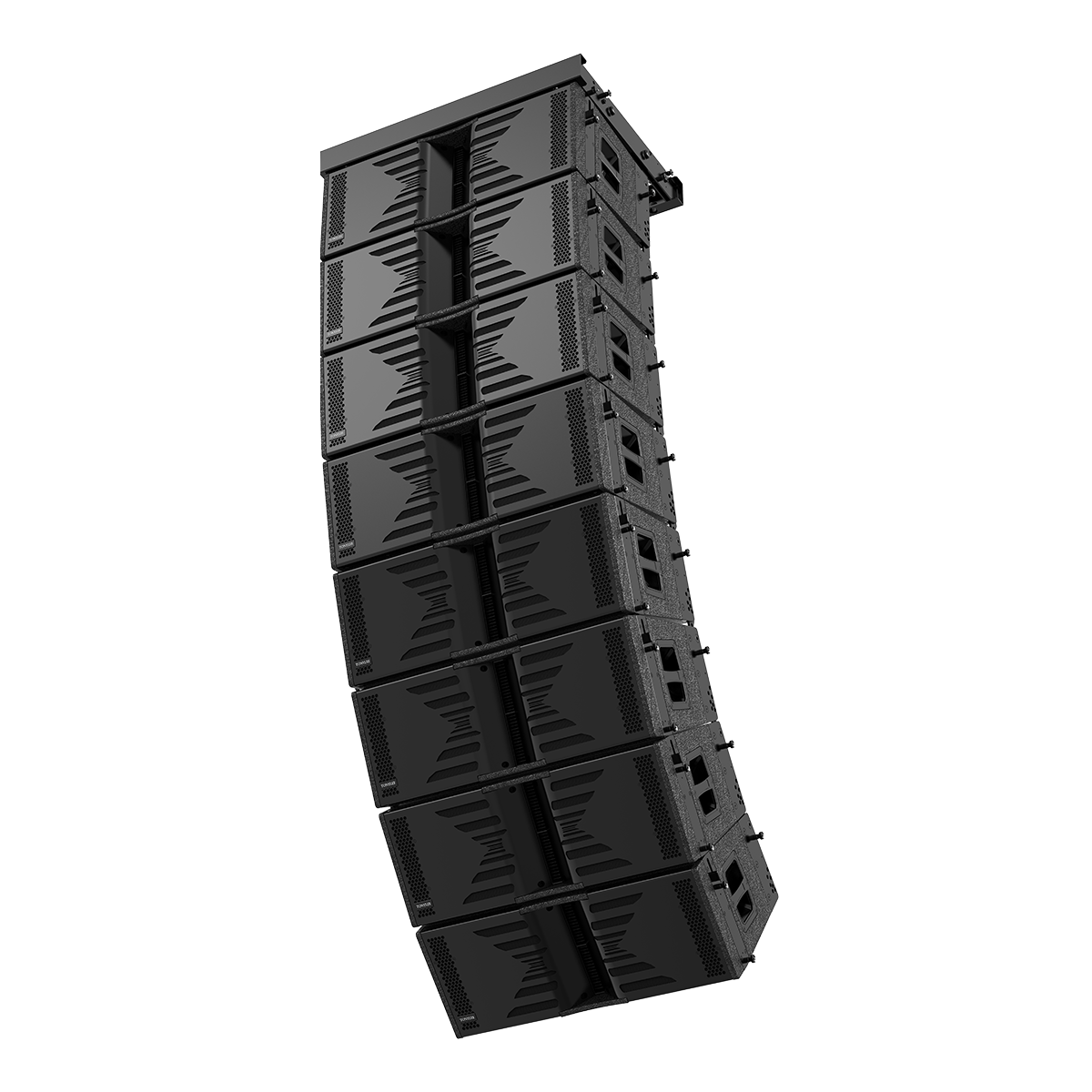

XLA122-DSP system can be used as a main PA system with a maximum of 16 cabinets per array.
User selectable three presets (Linear, HFX, W/SUB) in XLA122-DSP are available for users to choose according to their needs.
The XLA122-DSP can be suspended vertically. Built-in hardware with innovative quick-release mechanism with high-strength 10mm pins makes installation easy, safe and quick. The system can be sized according to the required vertical coverage angle to meet the different requirements of different applications. For venues where the system cannot be flown, customised frames are available for ground stacking (maximum of 4 cabinets).
Important Features
Innovative BrainCore™ technology to improve the audio performance of the system
The innovative BrainCore™ technology and built-in powerful DSP processor improve the performance of the speaker. With Cort™ correction technology and Limita™ processing technology, the system works with safety and reliability and achieves supreme performance.
Advanced Cooling System
Custom-moulded heat sink with honeycomb structure increases the contact surface with air, improving cooling efficiency.
Class D Amplifier
The XLA-DSP Series features customised Class D amplifiers together with switch mode power supply technology, ensuring high efficiency and a compact design.
Customized ProDriver
State-of-the-art speaker technology and custom-designed drivers deliver clean, clear sound and impressive dynamics.
Active speaker DSP
The XLA-DSP comes with 3 different presets. Users can select the preset that best suits their needs using the switch on the rear panel.
Innovative ETE™ Waveguide Technology
Innovative ETE™ waveguide technology provides accurate frequency response and controlled horizontal dispersion, ensuring the system delivers a balanced, clear and clean sound.
Solid wood construction
Optimised and compact CNC-machined cabinet. Constructed from Russian birch plywood, it's solid, waterproof and lightweight, making it ideal for touring applications.
Durable Polyurea Coating
The polyurea coating provides waterproof, wear resistance, impact resistance and aging resistance characteristics.
Integrated rigging
The integrated rigging is easy to assemble and gives the XLA-DSP the flexibility to be used in different venues and applications.
EASE GLL
EASE GLL file available.
Download
Global application support team，EASE GLL files available
Specifications
| XLA082-SP | XLA082-MA | XLA102-DSP | XLA122-DSP | XLA182-DSP | |
| Frequency Response(-10dB anechoic chamber) | 67Hz-20KHz | 67Hz-20KHz | 42Hz-20KHz | 40Hz-20KHz | 30Hz-140Hz |
| Maximum Calculated SPL/1M(Continuous/Peak) | 122dB/128dB | 122dB/128dB | 130dB/136dB | 133dB/139dB | 134dB/140dB |
| Horizontal Coverage Angle (Symmetrical) | 100° | 100° | 90° | 90° | / |
| Vertical Coverage Angle (Dissymmetrical) | Depend on the amount of the speaker and curvature of the line array | Depend on the amount of the speaker and curvature of the line array | Depend on the amount of the speaker and curvature of the line array | Depend on the amount of the speaker and curvature of the line array | / |
| LF Driver | Customized 2x8” driver, 2.0” voice coil | Customized 2x8” driver, 2.0” voice coil | Customized 2x10” driver, 2.5”voice coil | Customized 2x12” driver, 3”voice coil | Customized 2x18” driver, 4”voice coil |
| HF Driver | Customized driver, 1x1.75” voice coil,1.0” exit | Customized driver, 1x1.75” voice coil,1.0” exit | Customized driver, 1.0”exit, 2x1.75”voice coil | Customized driver, 1.4”exit, 2x3”voice coil | / |
| Amplifier Circuitry | / | Class D | Class D | Class D | Class D |
| Power(Peak) | / | 3200W | 3200W | 3200W | 4000W |
| Frequency Response(1W 8Ω 2ch) | / | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) |
| Intermodulation Distortion | / | ＜0.05% | ＜0.05% | ＜0.05% | ＜0.05% |
| Total Harmonic Distortion | / | ＜0.05% | ＜0.05% | ＜0.05% | ＜0.05% |
| Protection | / | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
| Cooling System | / | Cooling with fans | Cooling with fans | Cooling with fans | Cooling with fans |
| Processor | / | 96KHz signal sampling frequency | 96KHz signal sampling frequency | 96KHz signal sampling frequency | 96KHz signal sampling frequency |
| Presets | / | FLAT,HF BOOST,W/SUB | FLAT,HF BOOST,W/SUB | FLAT,HF BOOST,W/SUB | 80Hz，100Hz，120Hz |
| Signal Input/Output Connectors | 8pin speakon output | Female XLR input，male XLR & 8pin speakon output | Female XLR input，male XLR output | Female XLR input，male XLR output | Female XLR input，male XLR output |
| Power Input/Output | / | Power connector | Power connector | Power connector | Power connector |
| AC Power Operating Range | / | 100V~130V or 220V~240V（±10%,50/60Hz） | 100V~130V or 220V~240V（±10%,50/60Hz） | 100V~130V or 220V~240V（±10%,50/60Hz） | 100V~130V or 220V~240V（±10%,50/60Hz） |
| Adjusted Angles | 0°，2°，4°，6°，8°，10° | 0°，2°，4°，6°，8°，10° | 0.25°、1°、2.5°、4°、6°、8°、10° | 0.25°、1°、2.5°、4°、6°、8°、10° | / |
| Power consumption (1/8 output power) | / | 82W | 117W | 176W | 295W |
| Handles | 2 side | 2 side | 2 side | 2 side | 8 side |
| Cabinet Material | CNC made of excellent wood | CNC made of excellent wood | Russian birch plywood CNC made | Russian birch plywood CNC made | Russian birch plywood CNC made |
| Cabinet Color | Black is standard and default color. Consult with sales team for other customized colors | Black is standard and default color. Consult with sales team for other customized colors | Black is standard and default color. Consult with sales team for other customized colors | Black is standard and default color. Consult with sales team for other customized colors | Black is standard and default color. Consult with sales team for other customized colors |
| Speaker Dimensions(W×H×D) | 630x236x467mm | 630x236x467mm | 832×295×424mm | 1010×347×501mm | 1154×584×750mm |
| Carton Dimensions(W×H×D) | 779x570x325mm | 779x570x325mm | 922×519×385mm | 1100×585×437mm | 670×1249×840mm |
| Net Weight | 20.0Kg | 22.0Kg | 36.0Kg | 50.0Kg | 100.0Kg |
| Shipping Weight | 23.0Kg | 25.0Kg | 40.0Kg | 54.0Kg | 104.0Kg |
