MT is middle-high class amp for professional fixed installation market. It aims at real professional market, while with very attractive price. It is a good choice for the project which has a tight budget.
It can be used for large performance, big disco, nightclub, stadium, cinema and so on.
1) Precise & comprehensive protection system
2) Very nice sound dynamic
3) Very stable performance
4) High reliability
5) High quality-price ratio
1) We have specially made ODM capacitors, you can do marketing as high-class to ensure bigger profit margin.
2) “Carling switch” circuit breaker to ensure very good DC inrush protection.
3) Our two cooling fans are very efficient.
1) Specialized and perfect limiter to protect your sound system effectively. And you can choose the limiter by switch for different sound requirements.
2) The lowest power consumption is less than 0.1A when working without load.
3) Damping Factor is more than 500.
4) Slew Rate is equal and more than 25V/us.
5) The Phase Response is ±10°.
6) The frequency Response is 20Hz-20KHz ±0.5dB.
7) The S/N is more than 100dB, and Crosstalk is more than 60dB.
8) MT can work very stable at 2ohm with music signal.
9) The reliability rate can reach above 99%.
10) Professional design to improve the reliability effectively during the transportation such as touring performance.
We have got many patents on MT special circuit designs.
1) Special SLDDTM sound dynamic processing circuit. 100ms limiter delay, plus 8V limiter and accurate DC protection value. Different frequency makes the different delay value. This SLDDTM can make the best sound dynamic with electric feel and peak power.
2) Special LRSTM short circuit protection. When the output is short circuit, it can mute the input signal and switch off the relay. At the same time, it locks the amp by circuit. You need to switch off the amp and then switch on again to restart the amp. LRSTM short circuit protection can make sure of the reliability of the whole sound system.
3) Perfect LXTM input overload limiter protect. You'll never hear distortion. And it can protect the loudspeakers very well. Moreover, LXTM is working with sound dynamic. Different frequencies and temperature, LXTM is working differently to make sure of the protection of amps and speakers, and the nice sound dynamic.
Special Outlook Image Design：

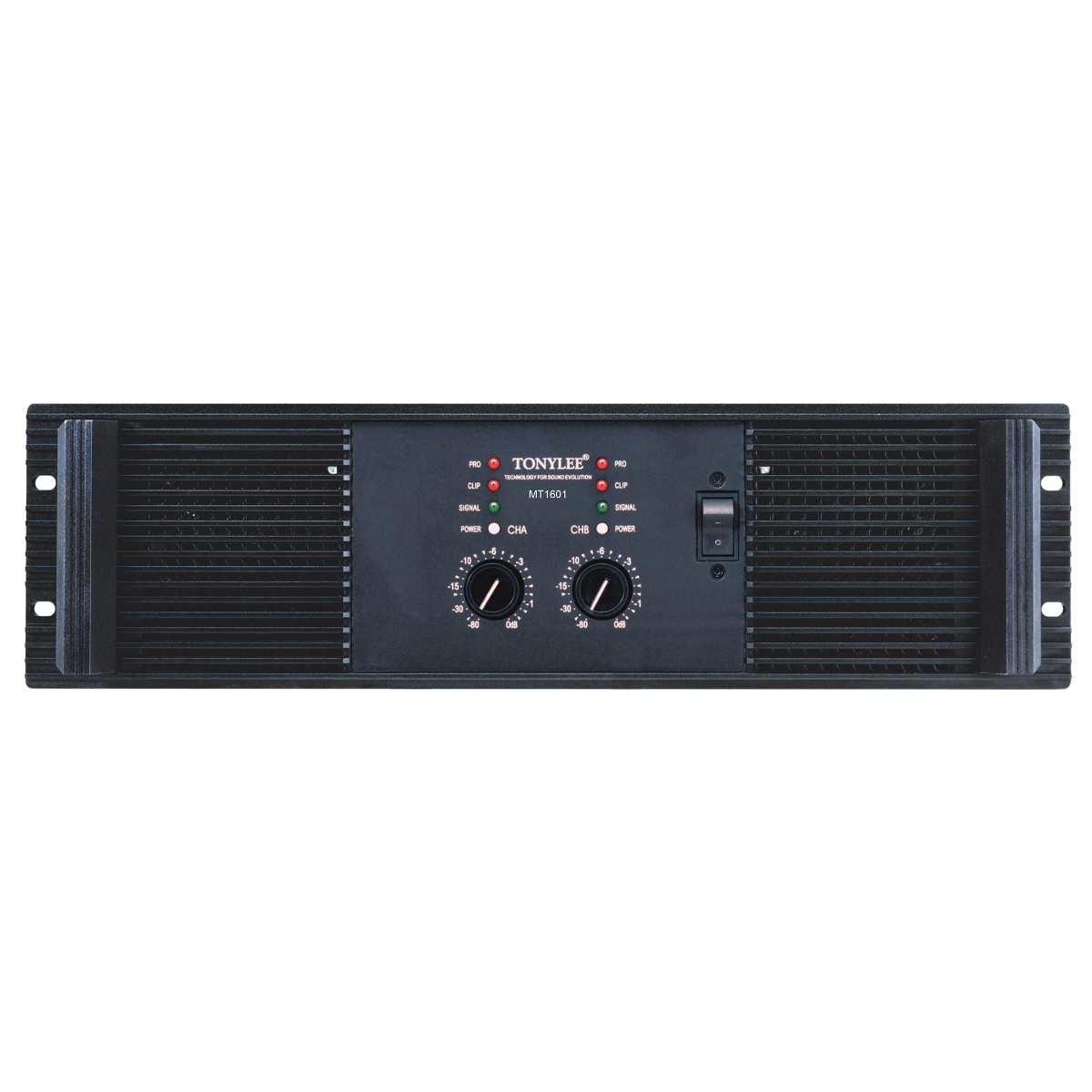

1) The front panel design is patent.

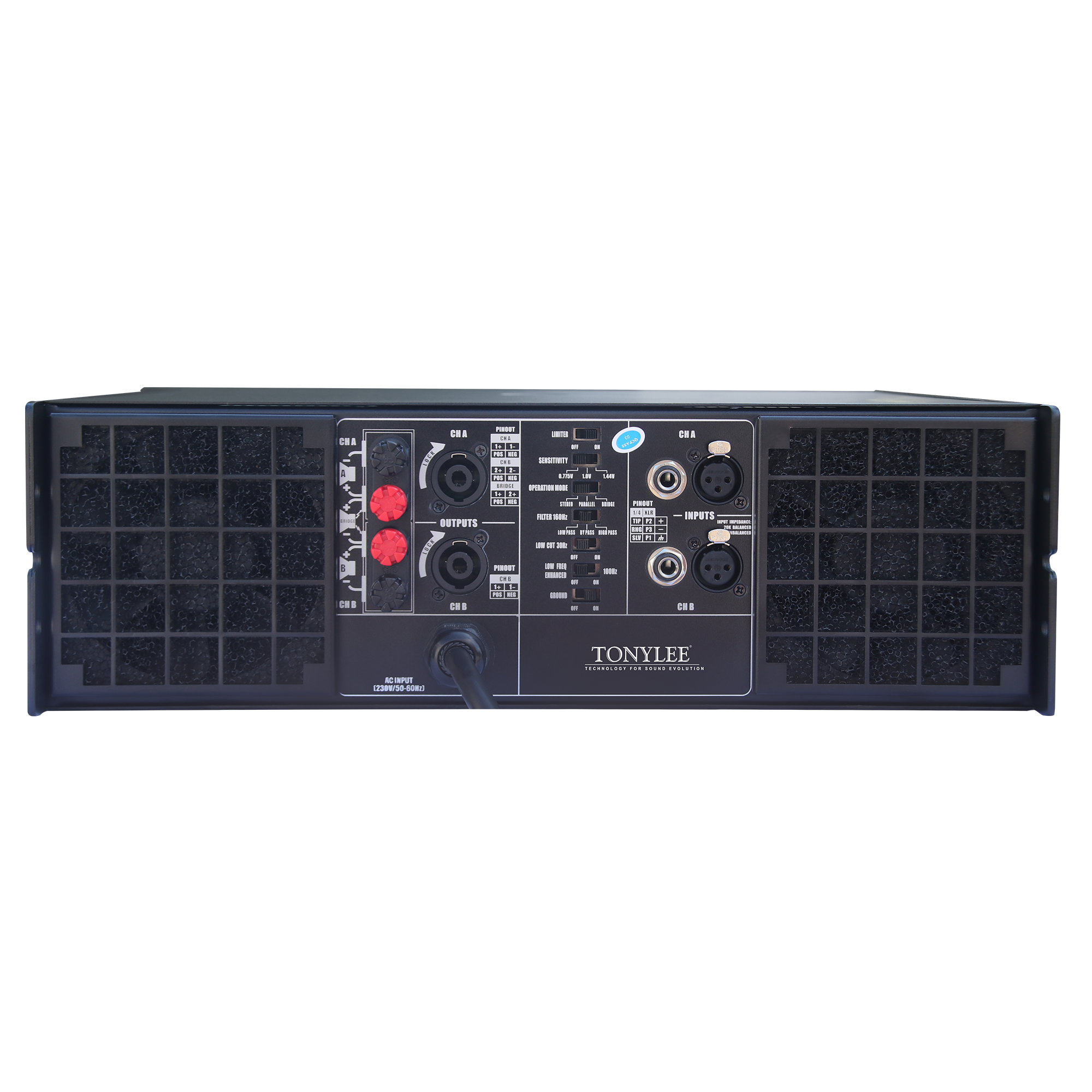

2) MT has very professional rear panel layout. The layout is according to function module. And it is stuck with PVC. The outlook image is very elegant.
3) We have specially designed the back ears to make the installation of amplifier to the flight case much easier.
4) We have specially made ODM capacitors. You can market as higher class to ensure bigger profit margin.
||2x 750W(8Ω stereo)||2x 900W(8Ω stereo)||2x 1200W(8Ω stereo)||2x 1400W(8Ω stereo)|
|2 x1200 W(4Ω stereo)||2 x1350 W(4Ω stereo)||2 x1800 W(4Ω stereo)||2 x2100 W(4Ω stereo)|
|2 x1600 W(2Ω stereo)||2 x1800 W(2Ω stereo)||2 x2400 W(2Ω stereo)||2 x2800 W(2Ω stereo)|
|2400W(8Ω bridge)||2700W(8Ω bridge)||3600W(8Ω bridge)||4200W(8Ω bridge)|
|3600W(4Ω bridge)||3600W(4Ω bridge)||4800W(4Ω bridge)||5600W(4Ω bridge)|
|Frequency Response (1W 8Ω stereo)||20Hz~20KHz(±0.5dB)||20Hz~20KHz(±0.3dB)||20Hz~20KHz(±0.3dB)||20Hz~20KHz(±0.3dB)|
|Sensitivity (8Ω stereo & 1KHz):||0.775V / 1.0V / 1.44V||0.775V / 1.0V / 1.44V||0.775V / 1.0V / 1.44V||0.775V / 1.0V / 1.44V|
|Mode||Stereo / Parallel / Bridge||Stereo / Parallel / Bridge||Stereo / Parallel / Bridge||Stereo / Parallel / Bridge|
|Fan speed regulation||two-speed||two-speed||two-speed||two-speed|
|Input connectors||Jack & female Neutrik XLR||Jack & female Neutrik XLR||Jack & female Neutrik XLR||Jack & female Neutrik XLR|
|Output connectors||Binding post & Neutrik Speakon||Binding post & Neutrik Speakon||Binding post & Neutrik Speakon||Binding post & Neutrik Speakon|
|Filter Capability||10000μf / 80V × 8||10000μf / 80V × 8||10000μf / 80V × 12||15000μf / 80V × 12|
|Input impedance||20k（Balanced） / 10k （Unbalanced）||20k（Balanced） / 10k （Unbalanced）||20k（Balanced） / 10k （Unbalanced）||20k（Balanced） / 10k （Unbalanced）|
|Crosstalk （ 20Hz-20kHz，Rated Power 8Ω）||≥60dB||≥62dB||≥62dB||≥65dB|
|S/N ratio（Rated Power 8Ω）||≥100dB||≥105dB||≥105dB||≥108dB|
|Damping Factor (1KHz, 8Ω)||≥650||≥650||≥800||≥1200|
|Total Harmonic Distortion(20Hz~20KHz Rated Power, 8Ω)||≤0.5%||≤0.5%||≤0.1%||≤0.1%|
|Phase response（1W & 8Ω 20Hz-20kHz）||±10°||±10°||±10°||±10°|
|Output circuitry||Class H+||Class H+||Class H+||Class H+|
|Protection||DC protection/Short circuit protection/High temperature protection/Input overload protection/Output overload protection/Soft start protection||DC protection/Short circuit protection/High temperature protection/Input overload protection/Output overload protection/Soft start protection||DC protection/Short circuit protection/High temperature protection/Input overload protection/Output overload protection/Soft start protection|
|Dimension(WxHxD)||483 x132x483mm||483 x132x483mm||483 x132x483mm||483 x132x483mm|
