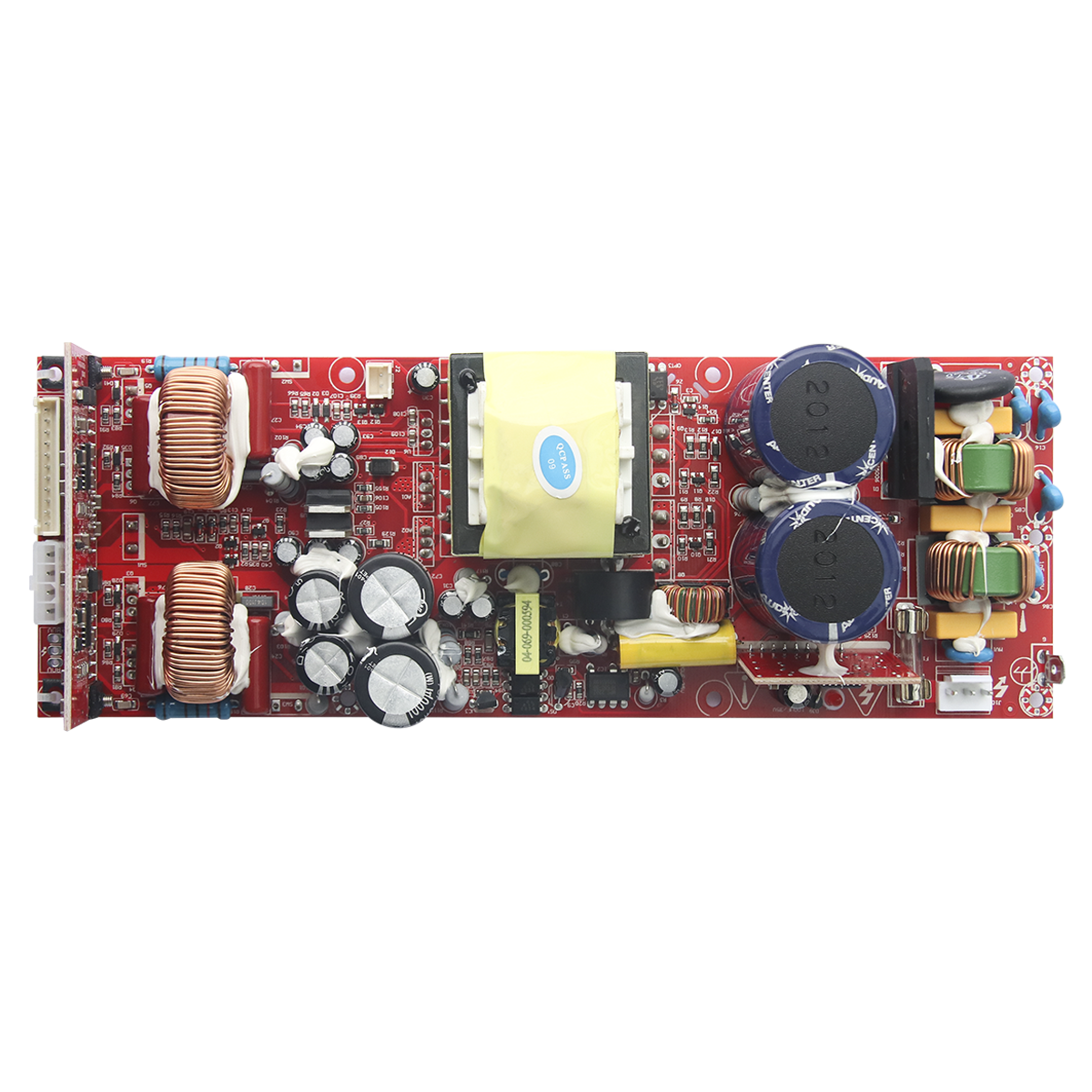

D3 Power amplifier module
D3 Power amplifier module
1.Mains Power
2.High voltage supplies
3.Loudspeaker outputs
4.Small signal supplies and control signals
5.Fan
Specifications
|
Load |
8Ω |
4Ω |
|
Output power per channel |
2x 300W |
2x 500W |
|
Output power bridge mode |
1000W |
/ |
|
Amplifier Gain |
26dB |
|
|
Signal To Noise-Ratio |
≥105dB(A-weighted,20Hz~20kHz, 8Ω load) |
|
|
THD+N(typical) |
≤0.05%( A-weighted,20Hz~20kHz, 8Ω,3dB below rated power) |
|
|
Frequency Response |
±0.5dB (20Hz~20kHz, 1W/8Ω) |
|
|
Protection Circuits |
Short circuit protection, DC protection, under/over voltage protection, temperature protection,overload protection |
|
|
Operation Voltage |
Universal Mains, 100-130Vac / 220-240Vac(50Hz ~ 60Hz) |
|
|
Dimensions |
58x80x230mm | |
| Weight |
884g |
|
